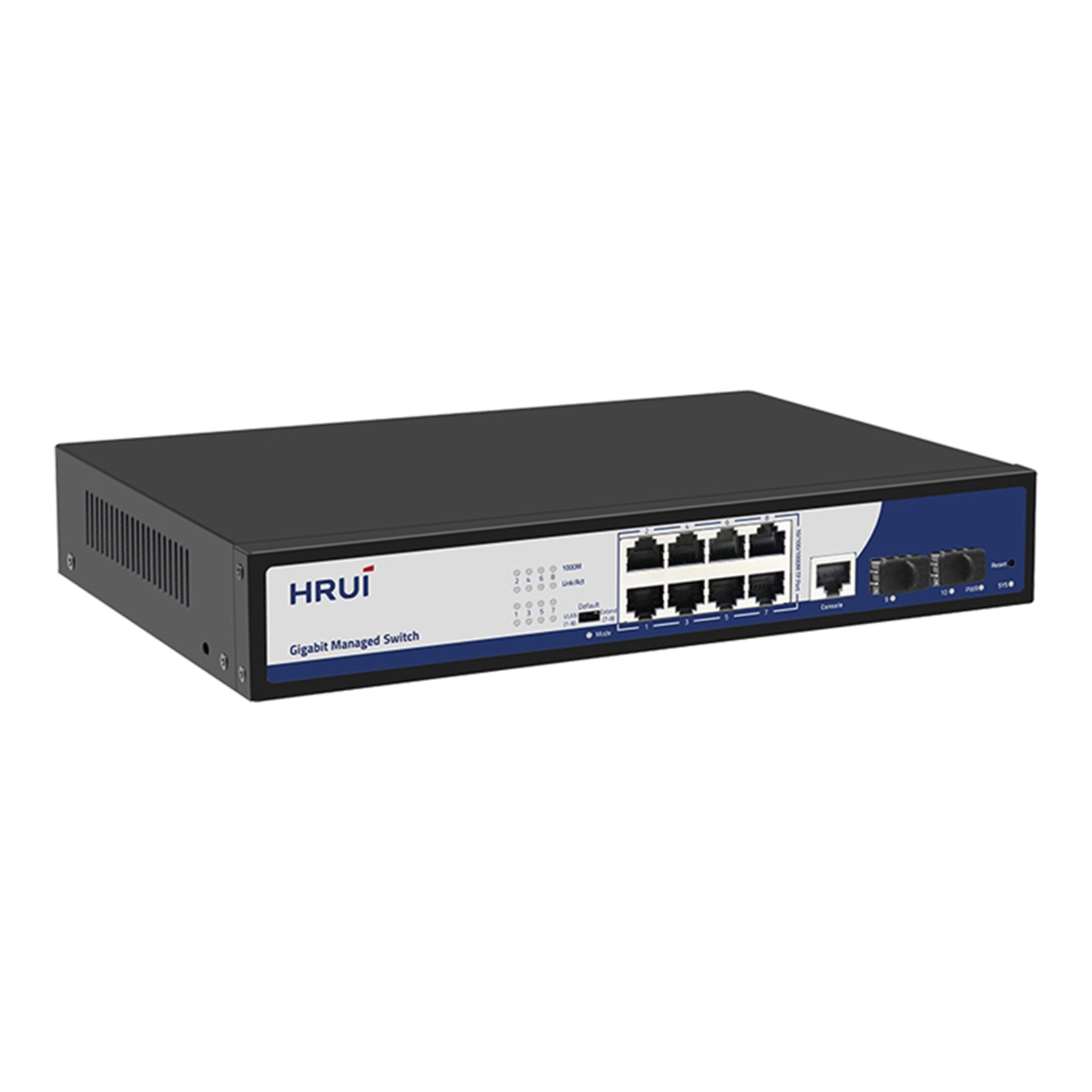

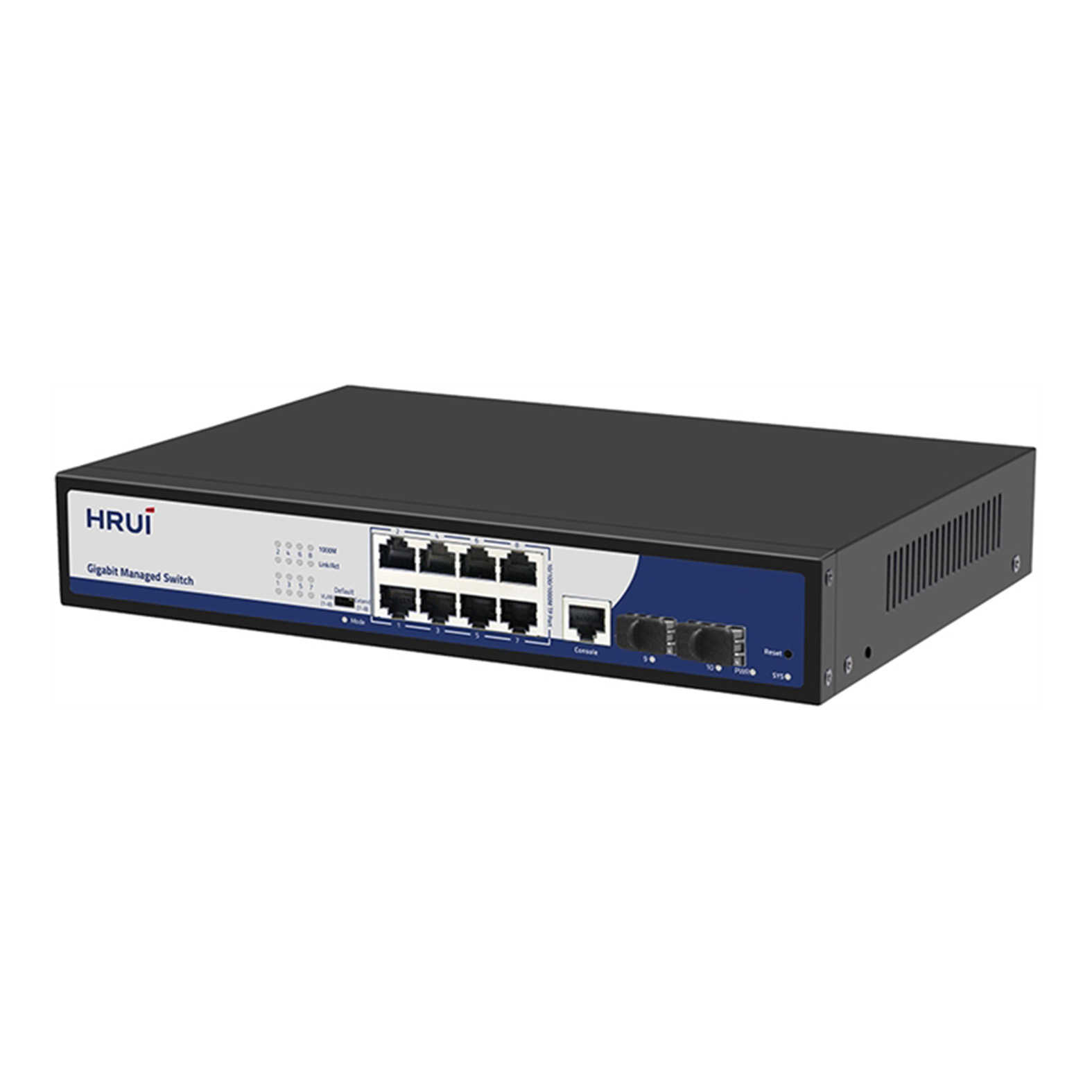

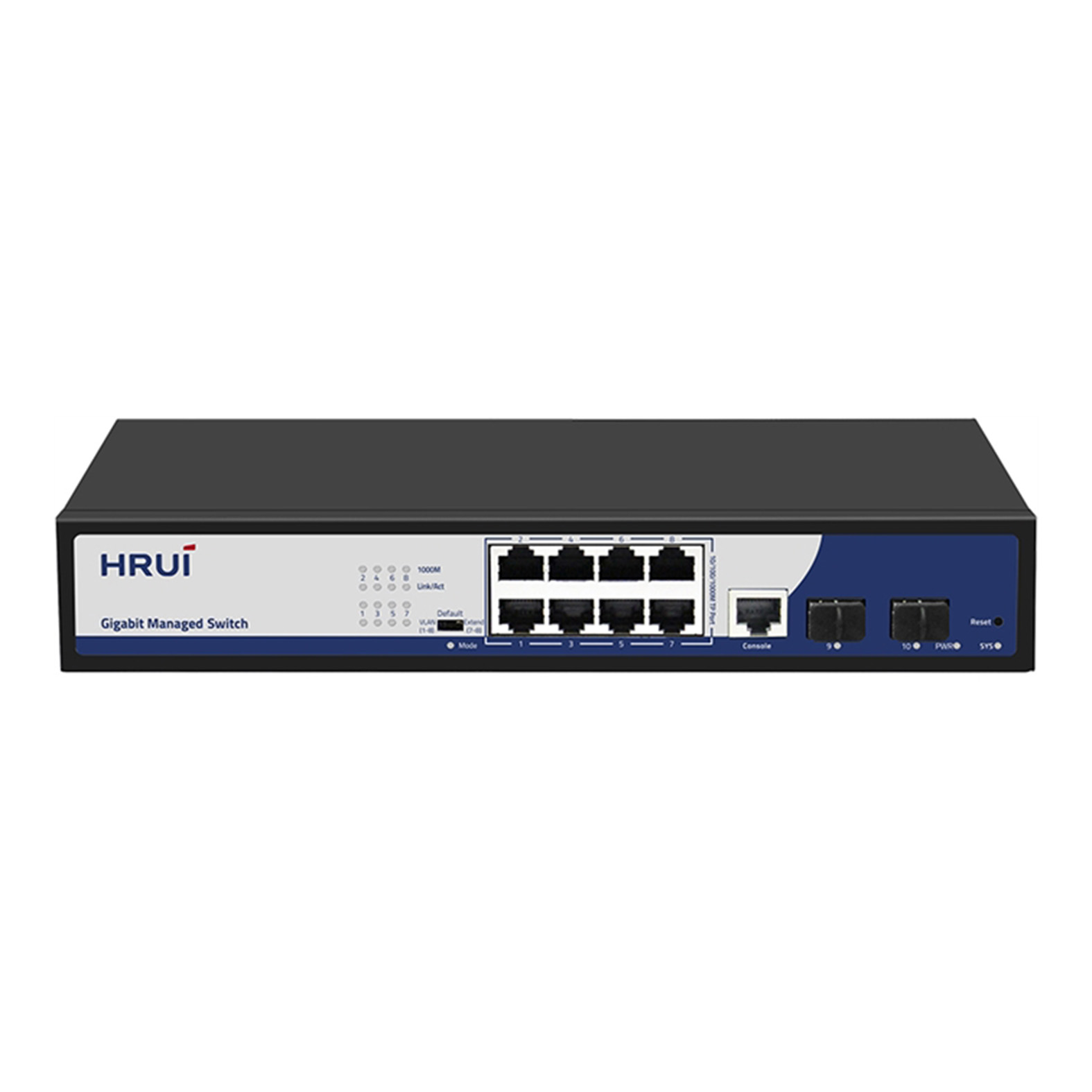

سوئیچ شبکه اترنت مدیریتی ۸ پورت گیگ و ۲ پورت SFP گیگ پهنای باند ۲۰Gbps اچ ار یو ای HRUI HR-SWG2082NS

Specifications

I/O Interface

Power

DC 12V

Ethernet

8*10/100/1000Mbps Ethernet Port

2*1000Mbps SFP Port

1*Console Port

Performance

Bandwidth

20Gbps (non-blocking)

Packet Forwarding rate

14.88Mpps

Packet Buffer

4M

Memory Capacity

128MB

Flash Capacity

16MB

MAC Address

8K

VLANs

4096

Jumbo Frame

9.6Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3: 10Base-T

IEEE802.3u :100Base-TX

IEEE802.3ab: 1000Base-TX

IEEE802.3z :1000Base-FX

IEEE 802.3x：Flow control

IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q：VLAN Bridge Operation

IEEE 802.1x：Client/Server Access Control and Authentication Protocol

IEEE 802.3ad：Standard method for performing link aggregation

IEEE 802.1d：STP

IEEE 802.1s：MSTP

IEEE 802.1w：RSTP

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)

EN61000-4-4 (EFT)

EN61000-4-5 (Surge)

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

optical characteristics

multi mode：850/1310nm （0-2KM）

Single mode：1310/1550/1490nm（0-120KM）

Protection

Security Certificae

CE、FCC、RoHS

Environment

Working Environment

Working Temperature：-10~50°C

Storage Temperature：-40~80°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet

Indication

LED Indicators

PWR、SYS、Link、ACT

Mechanical

Structure Size

Product Size：268*181*44mm

Package Size：312*260*84mm

Product Net-Weight：1.2KG

Product Gross-Weight：1.7KG

Packing Info

MEAS：540*435*332mm

Packing Qty：10PCS

Packing weight：18KG

Power Voltage

Power Input Voltage: AC 100-240 V

Power Output: 12V1A

Package List

Ethernet switch: 1 Set、Instruction manual: 1 PCS、Certificate: 1 PCS、Power cord:1PCS

Serial cable: 1PCS、Power:1PCS、Operation manual CD: 1 PCS

Software Function

Port Management

Enable/Disable Port

Speed、Duplex、MTU Setting

Flow-control

Port Information Check

Port Mirroring

Supports both side-way port mirroring

Port Speed Limit

Supports port-based input / output bandwidth management

Port Isolation

Support the downlink port isolation, and can communicate with the uplink port

Storm Suppression

Supports unknown unicast, multicast, unknown multicast,

broadcast type storm suppression

Storm suppression based on bandwidth regulation and storm filtering

Link Aggregation

Support static manual aggregation

Support LACP dynamic aggregation

VLAN

Access

Trunk

Hybrid

Support port, protocol, MAC-based VLAN partitioning

Support GVRP dynamic VLAN registration

Voice  VLAN

MAC

Support static addition, deletion

MAC address learning limit

Support dynamic aging time setting

Spanning tree

Support STP spanning tree protocol

Supports RSTP Rapid Spanning Tree Protocol

Supports MSTP Rapid Spanning Tree Protocol

Multicast

Support static addition, deletion

IGMP-snooping

Support MLD-Snooping

Support v1/2/3 dynamic multicast monitor

DDM

Support SFP/SFP+DDM

ACL

Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port

Qos

Based on 802.1p (COS) classification

Based on DSCP classification

Classification based on source IP, destination IP, and port number

Support SP, WRR scheduling strategy

Support flow rate limit CAR

LLDP

Support LLDP link discovery protocol

User settings

Add/delete users

Log

User login, operation, status, events

DOS defense

Anti-attack

Support CPU protection and limits the rate of sending cpu packets

ARP binding (IP, MAC, PORT binding)

Certification

Support 802.1x port authentication

Support AAA certification

Network diagnosis

Support ping、telnet、trace

System Management

Device reset, configuration save/restore, upgrade management, time setting, etc.

CLI

Support serial port command line management

SSH

Support SSHv1/2 remote management

TELNET

Support telnet remote management

WEB

Support Layer 2 settings, Layer 2 and Layer 3 monitor

SNMP

SNMP V1/V2/V3

Support trap：ColdStart、WarmStart、LinkDown、LinkUp

RMON

Support RMON v1

Other functions

Support DHCP  Snooping、Option82

Support dynamic ARP detection

Support TACACS+ certification

Support DNS certification

Support port security settings

Support MVR protocol

Support cable detection VCT function

Support UDLD protocol
