سوئیچ مدیریتی 12 پورت SFP 10G و 1 پورت کنسول گیگ اچ ار یو ای HRUI HR-SWTG3C12F

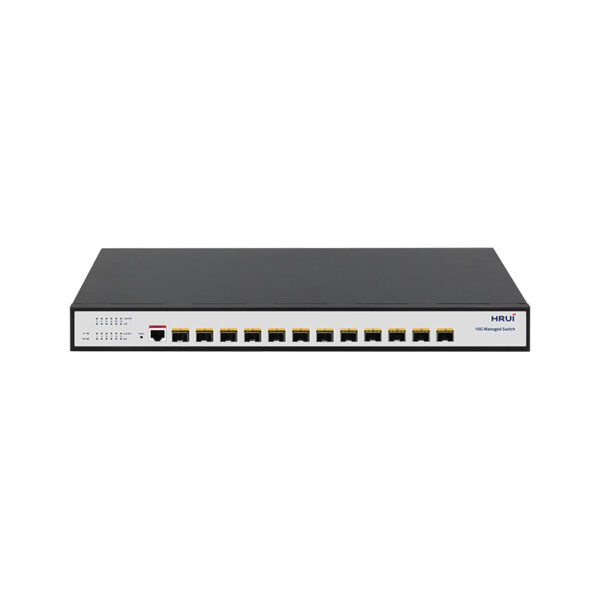

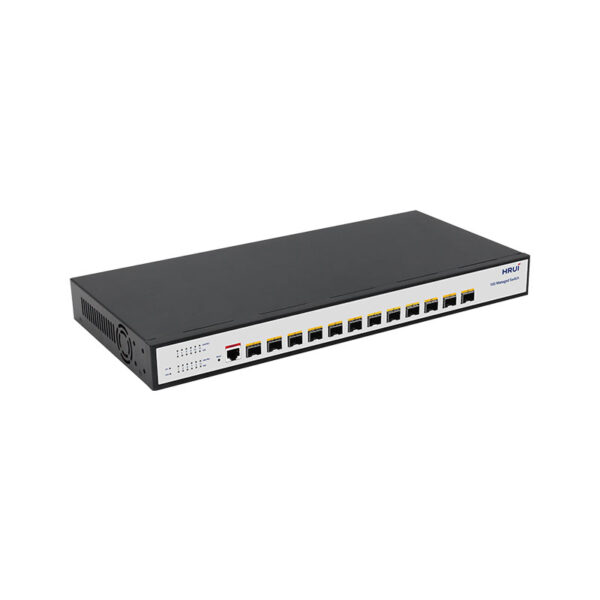

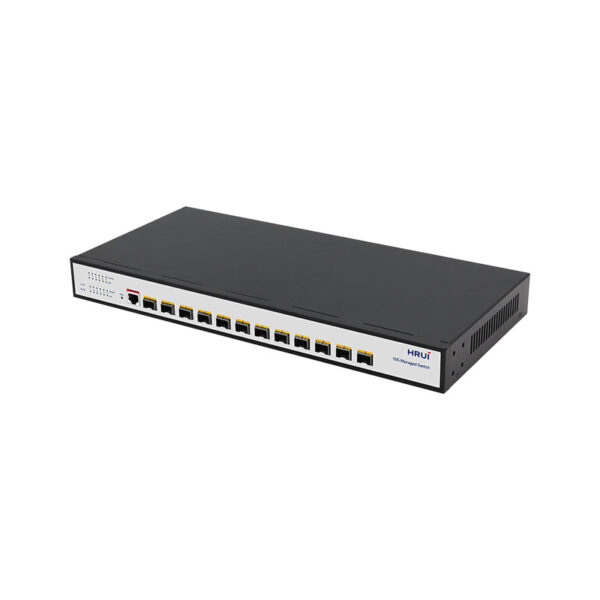

HRUI HR-SWTG3C12F Switch
– سوئیچ 12 پورت SFP 10G و 1 پورت کنسول
– سوئیچ مدیریتی لایه 3
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 300KB |  |
برند
HRUI
Power
AC100-240V 50/60Hz
Ethernet
12* SFP+ Ports
1* RJ45 Console Port
Bandwidth
240Gbps
Pack Forward Rate
178.56Mpps
DDR SDRAM
128 MB
Flash Memory
16 MB
Pack Cache
16Mbit
MAC Address
32K
Jumbo frame
12K
VLANs
4096
MTBF
100000 Hours
Network Protocol
IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3z (Gigabit Ethernet optical fiber)
IEEE 802.3ae (10G Ethernet)
IEEE802.3x (Flow control)
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3ad (link aggregation)
IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1D Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q (virtual local area network)
IEEE 802.1p (VLAN tags)
IEEE 802.1X (User Authentication)
Industry Standard
EMI: FCC 47 CFR Part 15 Subpart B (Class A) EMS: EN61000-4-2 (ESD),
EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Fiber Medium
Multimode Fiber: 50/125, 62.5/125, 100/140um
Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Safety Certificate
CE, FCC, RoHS
Working Environment
Working Temperature: -10~50 °C Storage Temperature: -40~70 °C
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~90%, non-condensing
PWR
On: Powered on
Off: Powered off
SYS
On: System normal
Flashing: System startup
10G (Link)
Lighting: 10G Link
Link/ACT
On: Connecting; Flashing: Data Transmit; Off:Disconnect
Structure Size
Product Dimensions: 440*205*44 mm
Package Dimensions: 500*290*85 mm
Product N.W: 2.50 KG
Product G.W: 3.12 KG
Packing Info
Carton Dimensions：520*445*300 mm
Packing Quantity：5 PCS
Packing weight：16.6 KG
Power Voltage
Voltage: AC100-240V, 50/60Hz
Power supply: 12V8A
Consumption
＜30W
Packaging List
Switch: 1 Set,
Instruction manual: 1 PC,
Certificate: 1 PC,
Power cord: 1 PC
Serial cable: 1 PC,
Rack ear: 1 Pair
