سوئیچ 4 پورت 10/100M PoE و 1 پورت 10/100M Uplinkصنعتی اچ ار یو ای HRUI HR500-AF-41
HRUI HR500-AF-41 Switch
– سوئیچ 4 پورت 10/100M PoE و 1 پورت 10/100M Uplink
– سوئیچ PoE صنعتی
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 300KB |  |
برند
HRUI
مدل
HR500-AF-41
Product name
5 Ports 10/100M Intelligent Industrial PoE Switch
Connector Type
4*10/100M PoE ports + 1*10/100M RJ45 ports
Network Protocols
IEEE802.3
IEEE802.3i
IEEE802.3u
IEEE802.3ab
IEEE802.3z
POE Parameters
PoE Standard: IEEE802.3at (30W) and IEEE802.3af (15.4w)
Each port Max: 15.4W (IEEE 802.3af)
Each port Max: 30W (IEEE 802.3at)
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC 52V
PoE power supply core: 1/2+ ; 3/6-
Network Media
10BASE-T: Cat3, 4, 5 or more UTP(≤100 m)
100BASE-TX: Cat6 or more UTP(≤100 m)
1000BASE-TX: Cat5 or more UTP(≤100 m)
LED indicator PWR (Power supply)
On: Power On
Off: No Power
LED indicator 1-5 ports (Green)
On: Connecting
Flashing: Data Transmit
Off: Disconnect
LED indicator Power Supply
Power input: DC48～55V

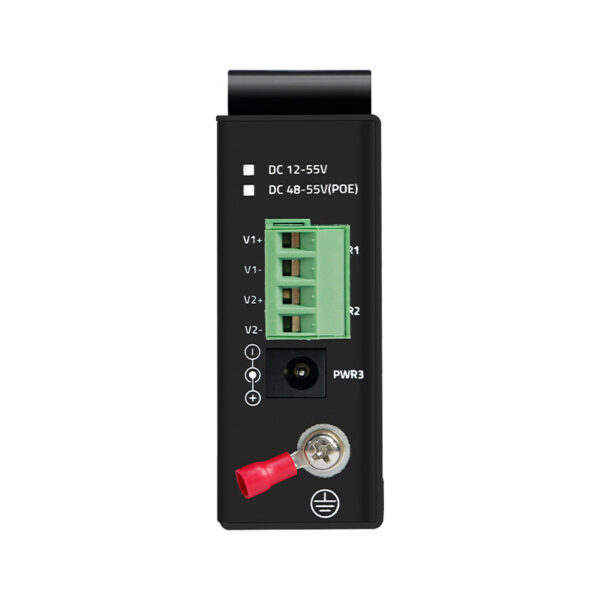

power supply wiring: 4 PIN terminal block (redundancy V1+V1-, V2+V2-); DC-IN 2.1mm
LED indicator Working Environment
Operating Temperature: -40～75℃
Storage Temperature: -40～85℃
Humidity: 5%~95 %( non-condensing)
Industry Standard
EMI: FCC Part 15, CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Mechanical Structure
Shell protect grade: IP40
Installation: DIN rail
N.W: 0.409KG G.W: 0.489KG(without power supply)
Product Dimension (L×W×H): 119mm * 87mm * 28mm
Package Dimension (L×W×H): 175mm * 130mm * 55mm
Package Contents
Industrial Switch: 1 unit
User Guide: 1unit
Certificate warranty card: 1unit
Certification
CE, FCC, CCC, RoHS
MTBF
100.000 hours
Bandwidth
1Gbps
Cache
448K
Chipset
IP175G
Package Forwarding Rate
0.744Mpps
MAC address1
K
Forwarding mode
Store-and-forward
