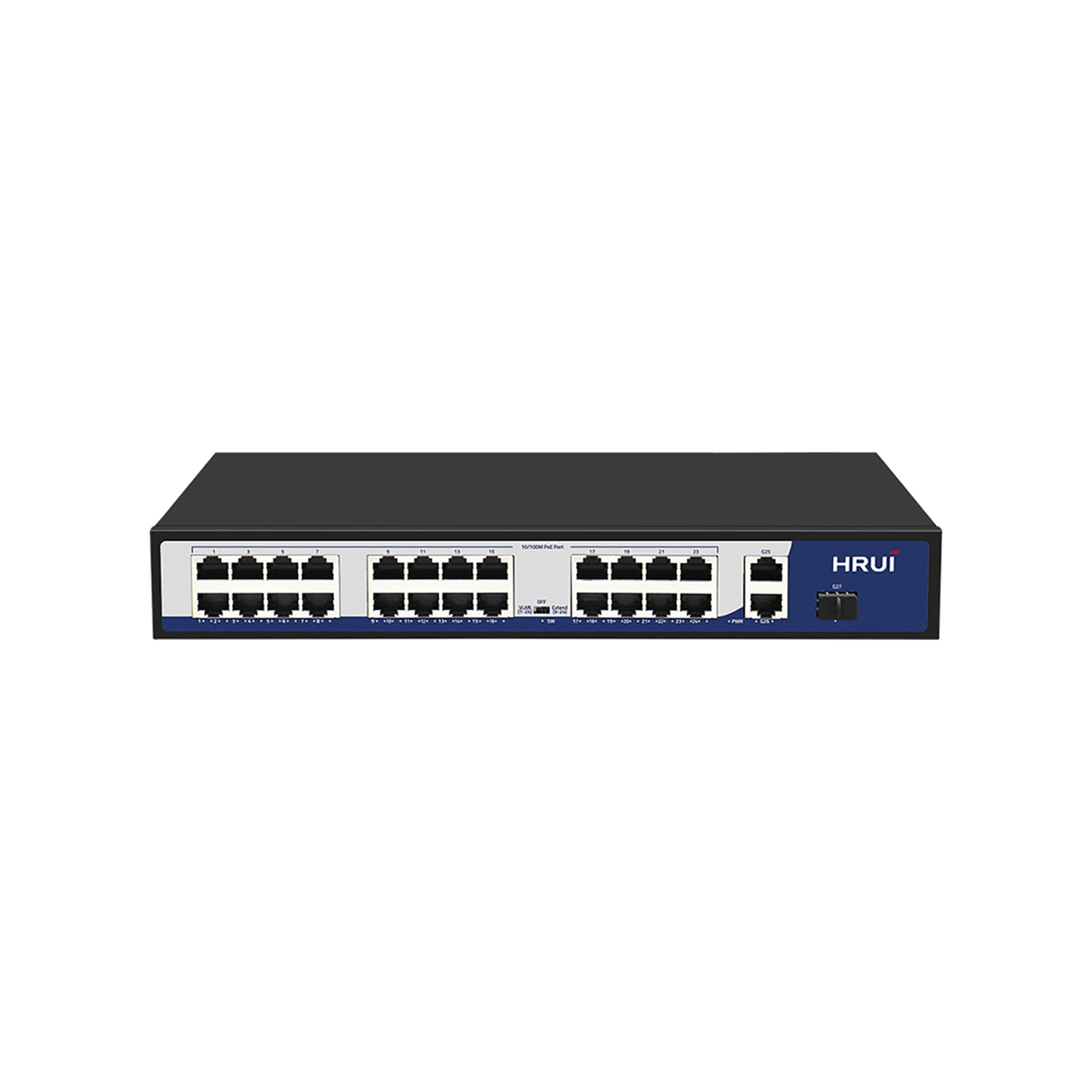

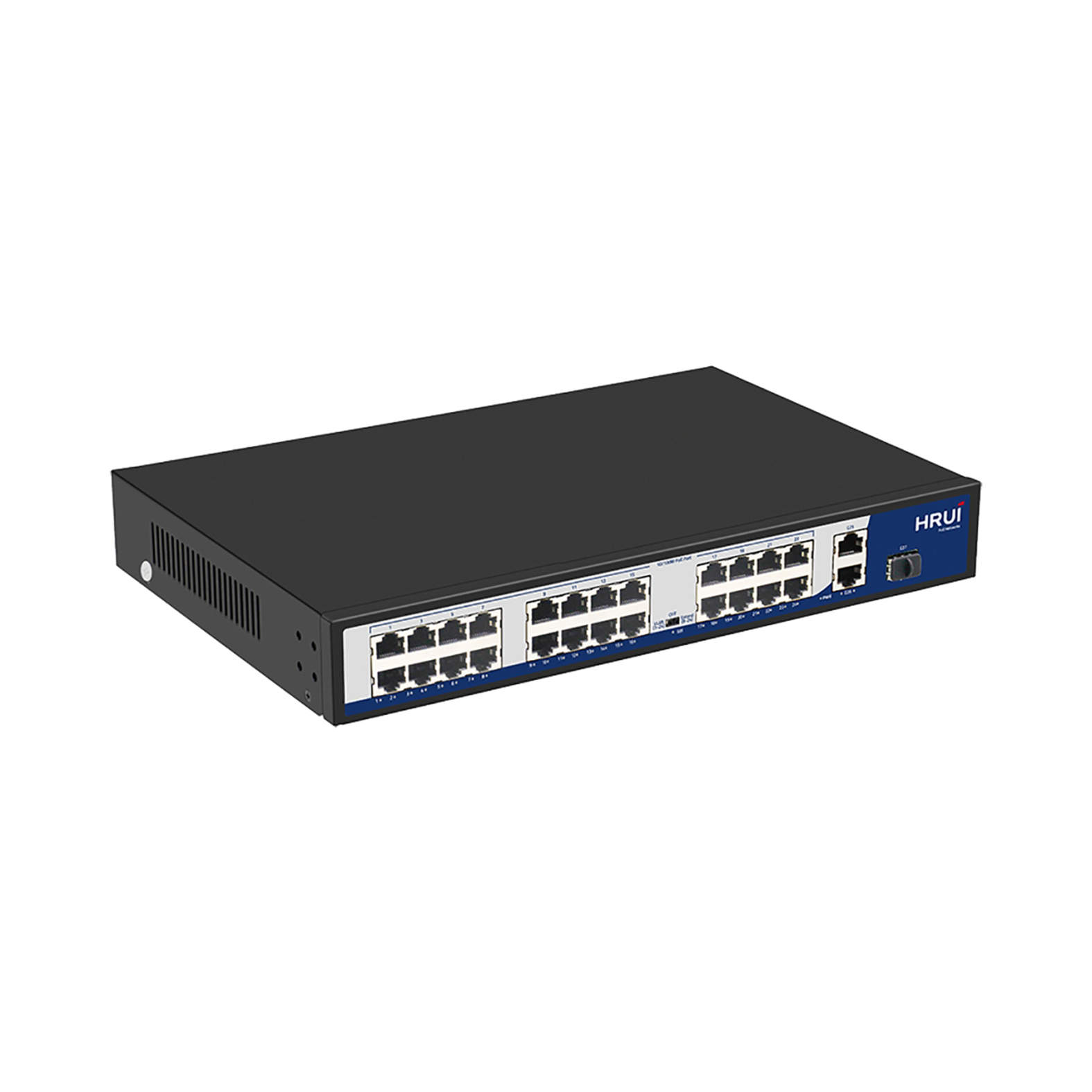

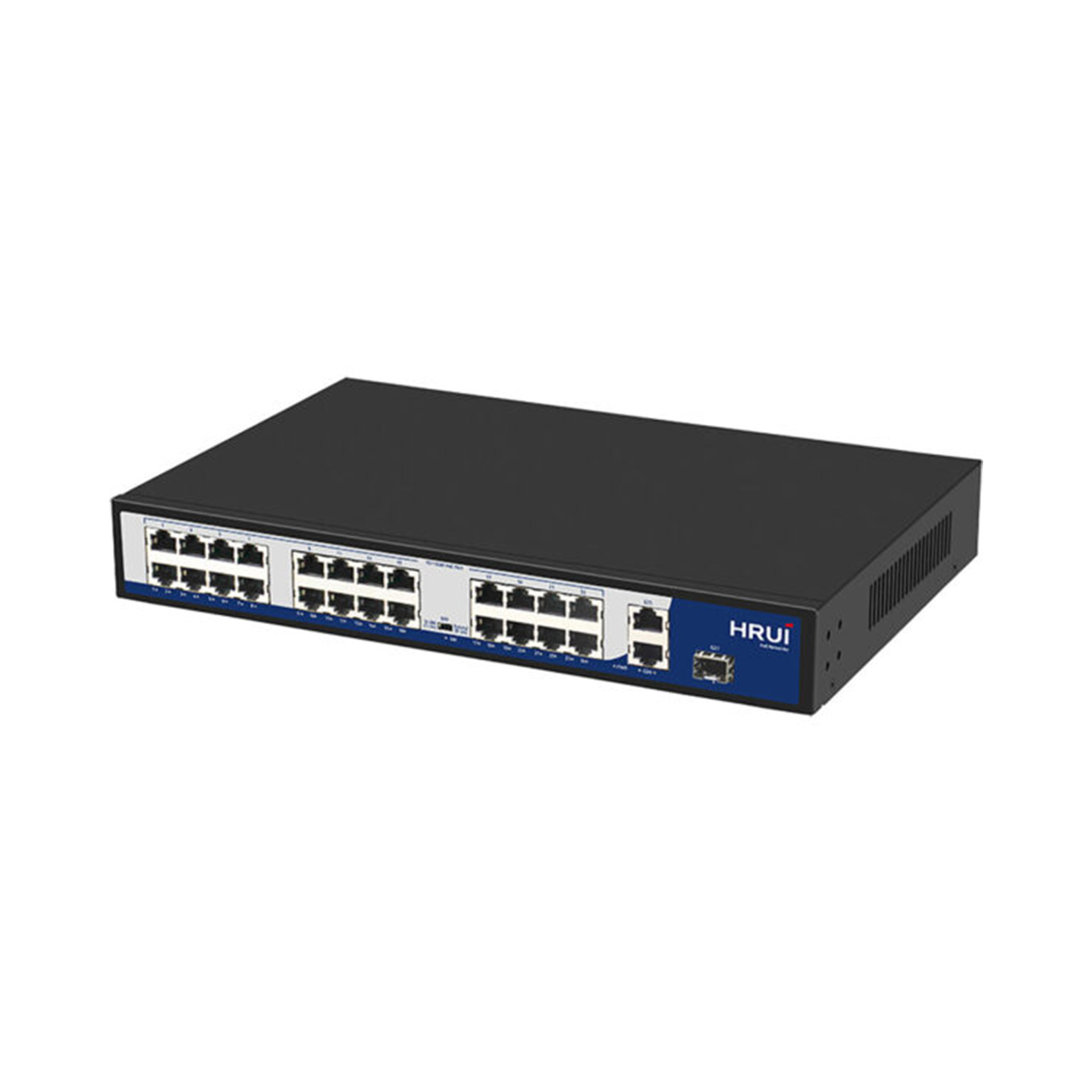

سوئیچ شبکه PoE دارای ۲۴ پورت ۱۰۰/۱۰ و ۲ پورت آپلینک و ۱ پورت SFP گیگ پهنای باند Gbps۱۰.۸ اچ ار یو ای HRUI HR901-AF-2421GS-400
HRUI HR901-AF-2421GS-400
ضمانت اصالت کالا
امکان تحویل اکسپرس تهران
ضمانت کمترین قیمت کالا
عنوان | نوع فایل | حجم | دانلود |
Data Sheet | PDF | 260KB |  |
برند
HRUI
مدل
HRUI HR901-AF-2421GS-400
Power
Input: AC 100-240V, 50/60Hz
Ethernet
24 Port 10/100M PoE + 2 Port 1000M Ethernet Uplink+1 Port 1000M SFP
Switching Capacity
10.8Gbps
Forwarding Rate
8.035Mpps
Packet Buffer
1.5Mb
MAC Address
2K
Jumbo Frame
9216bytes
Transfer Mode
Store and forward
MTBF
100000 hours
Network protocol
IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3ab
PoE Protocol
IEEE802.3af (15.4W)
IEEE802.3at (30W)
Industry Standard
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-4 (EFT)
EN61000-4-5 (Surge)
Network Medium
10BASE-T: Cat 3, 4, 5 UTP(≤100 meter)
100BASE-TX: Cat5 or more UTP (≤100 meter)
1000Base-TX: Cat5 or more UTP/STP(≤100 meter)
Optical Media
Multimode fiber: 50/125, 62.5/125, 100/140um
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um
Certificate
CE, FCC, RoHS
Environment
Working Temperature: -10~50°C
Storage Temperature: -40~85°C
Working Humidity: 10%~90%，non-condensing
Storage Temperature: 5%~90%，non-condensing
Working Height: Maximum10,000 feet
Storage height: Maximum 10,000 feet
Dimension
Product Dimension (L*W*H): 320*207*45mm
Package Dimension (L*W*H): 370*290*85mm
N.W: 1.9kg
G.W: 2.4kg
Power Voltage
Input Voltage: AC 100-240 V
Power supply: 52V5.76A
DIP Switch
VLAN : Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port
OFF: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive
Extend : Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
LEDs
PWR(power supply)，SW(DIP)，1-27(Link&Data)
